2. Machine assembly
Full-skid orientation. Numbering is shared on both drawings. Component #3 (the Elemental cabinet) is detailed in the next chapter.
How to use this chapter
Yellow bubbles 1–7 match on the isometric and front views.
Confirm capacities and duties against your site as-built drawings.
Assembly overview
The skid is a symmetrical pair of stacks flanking the central control cabinet:
- Rear row: two large vertical poly tanks — Output Tank A and Output Tank B
- Front row: four IBC totes — Macro Concentrate tanks 1–4
- Centre: Elemental control cabinet, with a horizontal pipe/cable manifold from the totes past the cabinet toward the rear tanks

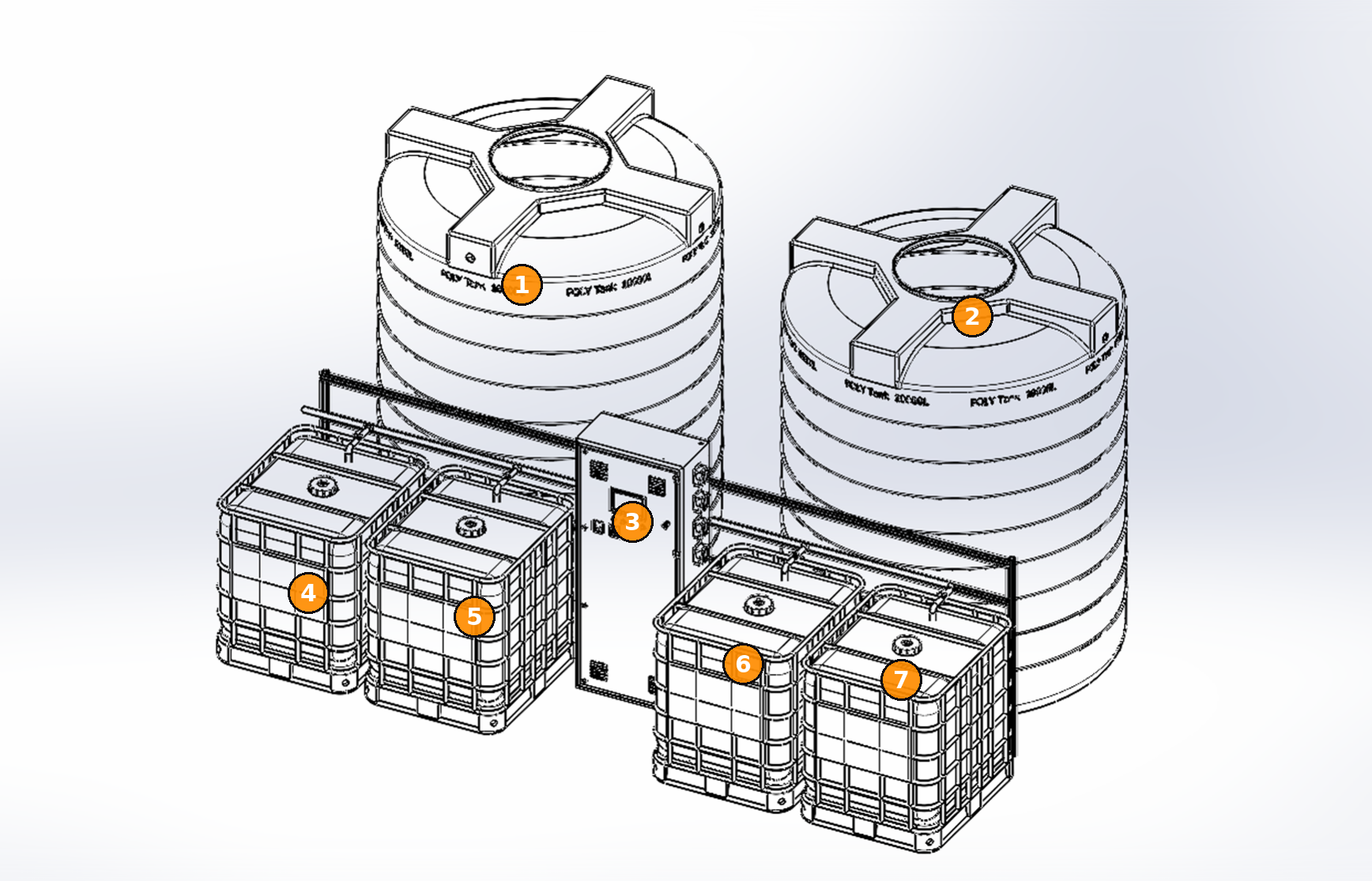

isometric_main_annotated_1.png).

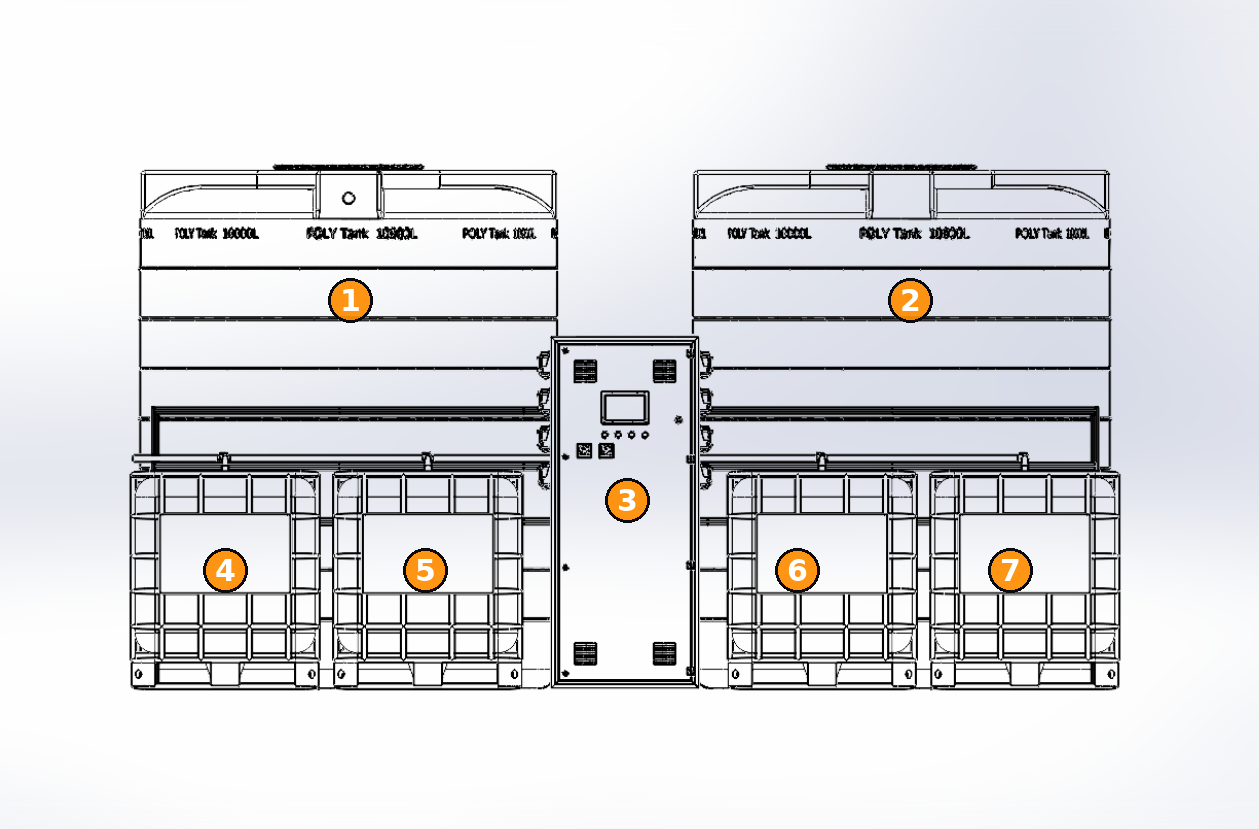

front_main_annotated_1.png).Component table
| # | Component | Description |
|---|---|---|
| 1 | Output Tank A | Large vertical poly tank, rear-left. Molded label often reads “POLY Tank 10000L”. |
| 2 | Output Tank B | Large vertical poly tank, rear-right — same style as #1. |
| 3 | Elemental control cabinet | Main electrical / control enclosure — see Control cabinet. |
| 4 | Macro Concentrate tank 1 | IBC tote, front-left (outer). |
| 5 | Macro Concentrate tank 2 | IBC tote, front-left (inner, next to cabinet). |
| 6 | Macro Concentrate tank 3 | IBC tote, front-right (inner, next to cabinet). |
| 7 | Macro Concentrate tank 4 | IBC tote, front-right (outer). |
HMI mapping (operator note)
- Output tanks A / B on the Monitor screen correspond to physical tanks #1 / #2.
- Setup channels BIG-1…4 (macro) typically draw from concentrate totes #4–7.
- Setup channels SML-1…4 (micro) are not shown as separate vessels on this drawing — confirm micro vessel locations with your installer if present on site.
Confirm on site
Capacities and exact duties should be confirmed against site as-built drawings.
